FTS 506

Hidden fixing system made of vertical and horizontal load brackets with horizontal battens which enables out-of-phase layouts with the FAVEKER® tiles. Horizontal profiles are installed on the vertical profiles which lay on the brackets. The tolerance fitting between the ceramic tiles and the horizontal profile is made by means of polymer polyurethane mastic. Compatible with GA20.

Components of the
fixing system

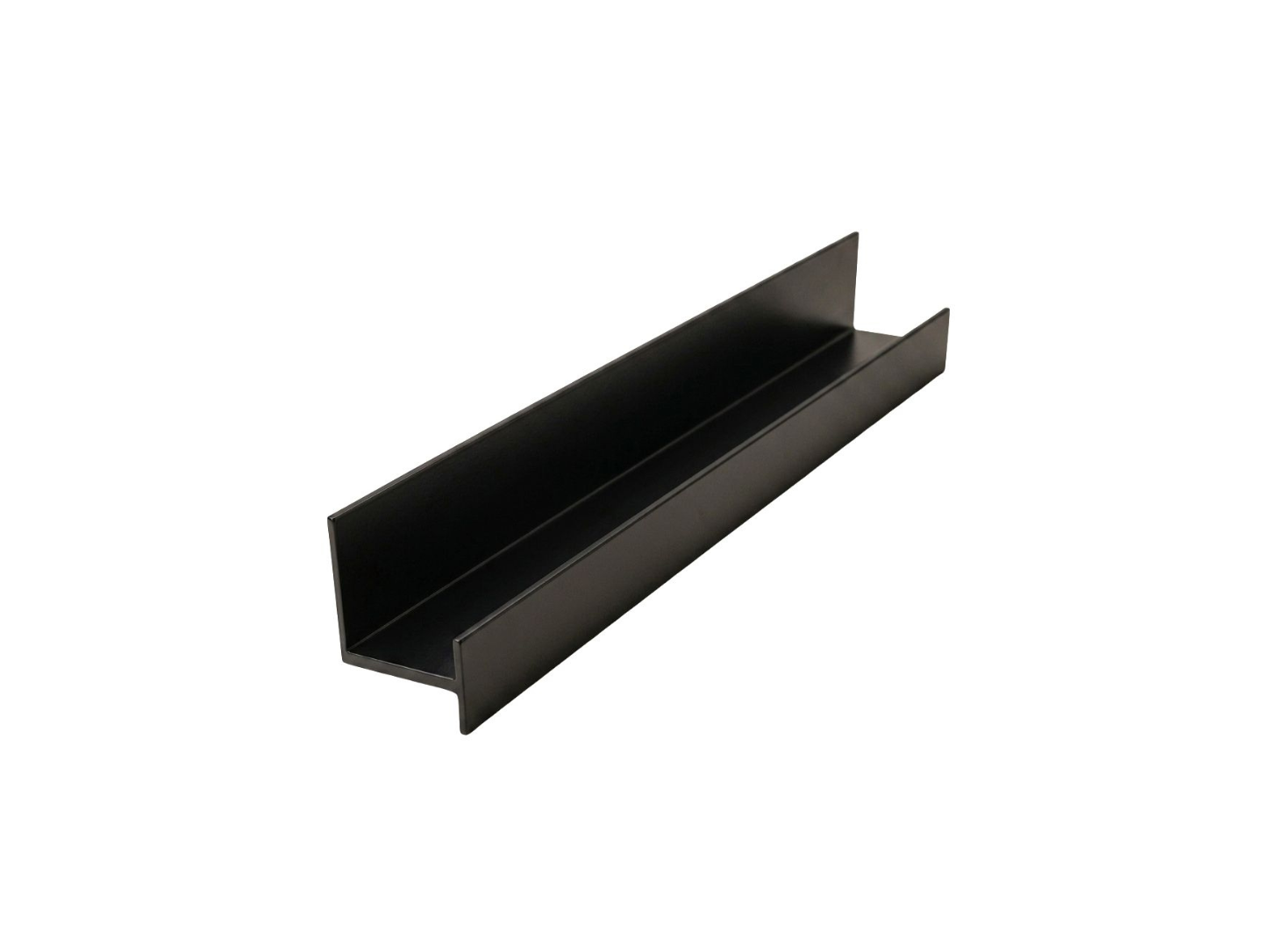

L Intermediate Profile

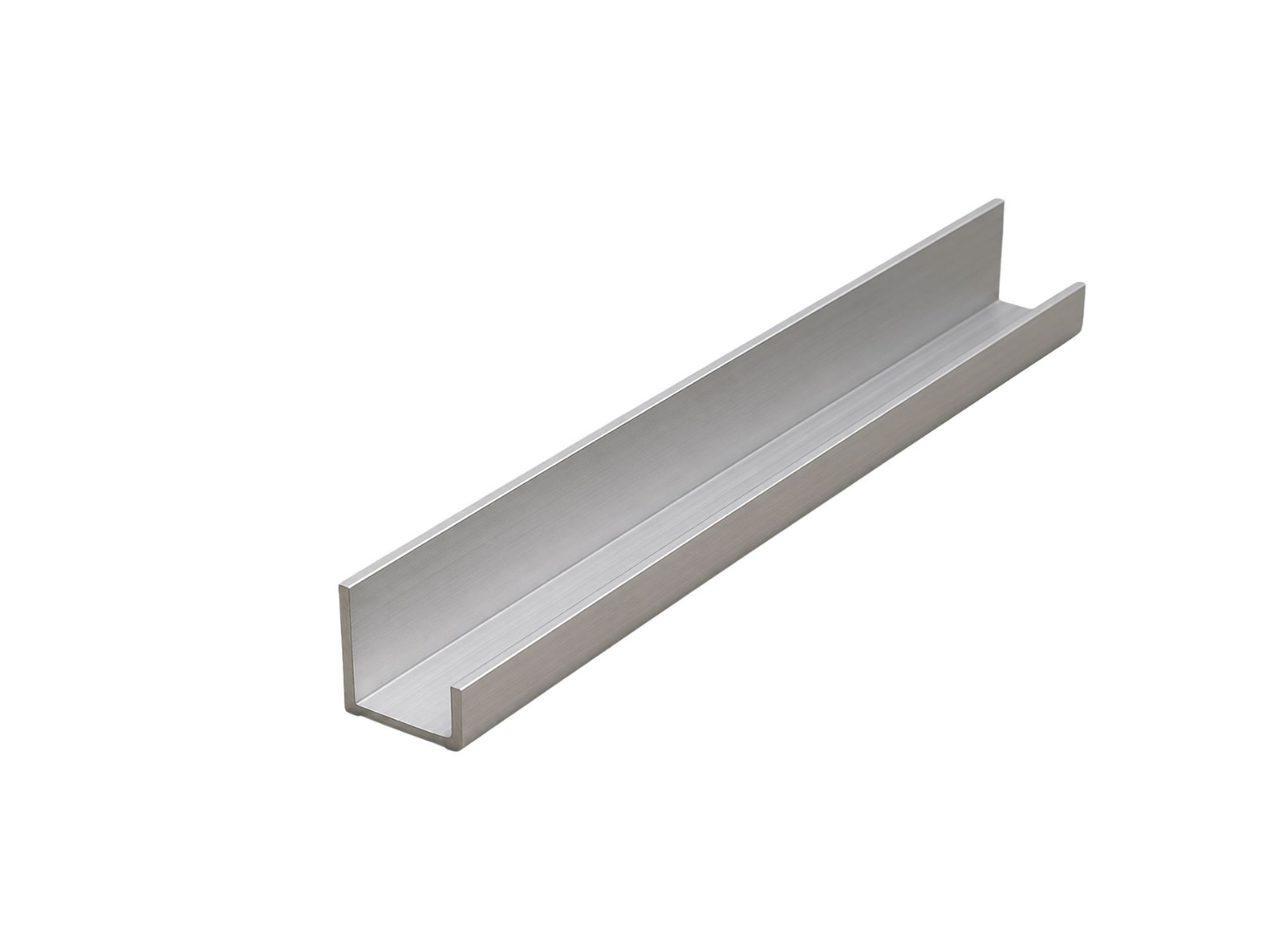

L Start/End Profile

T profile

Vertical load bracket H120

Horizontal load bracket H60

Termostop H120

Termostop H60mm

Self-drilling screw 5,5

Self-drilling screw 4,8

Expansive metallic fixer

Polyamide TFUX fixer

Plastic top for polyamide fixer

GA20 ventilated façade installation tutorial
