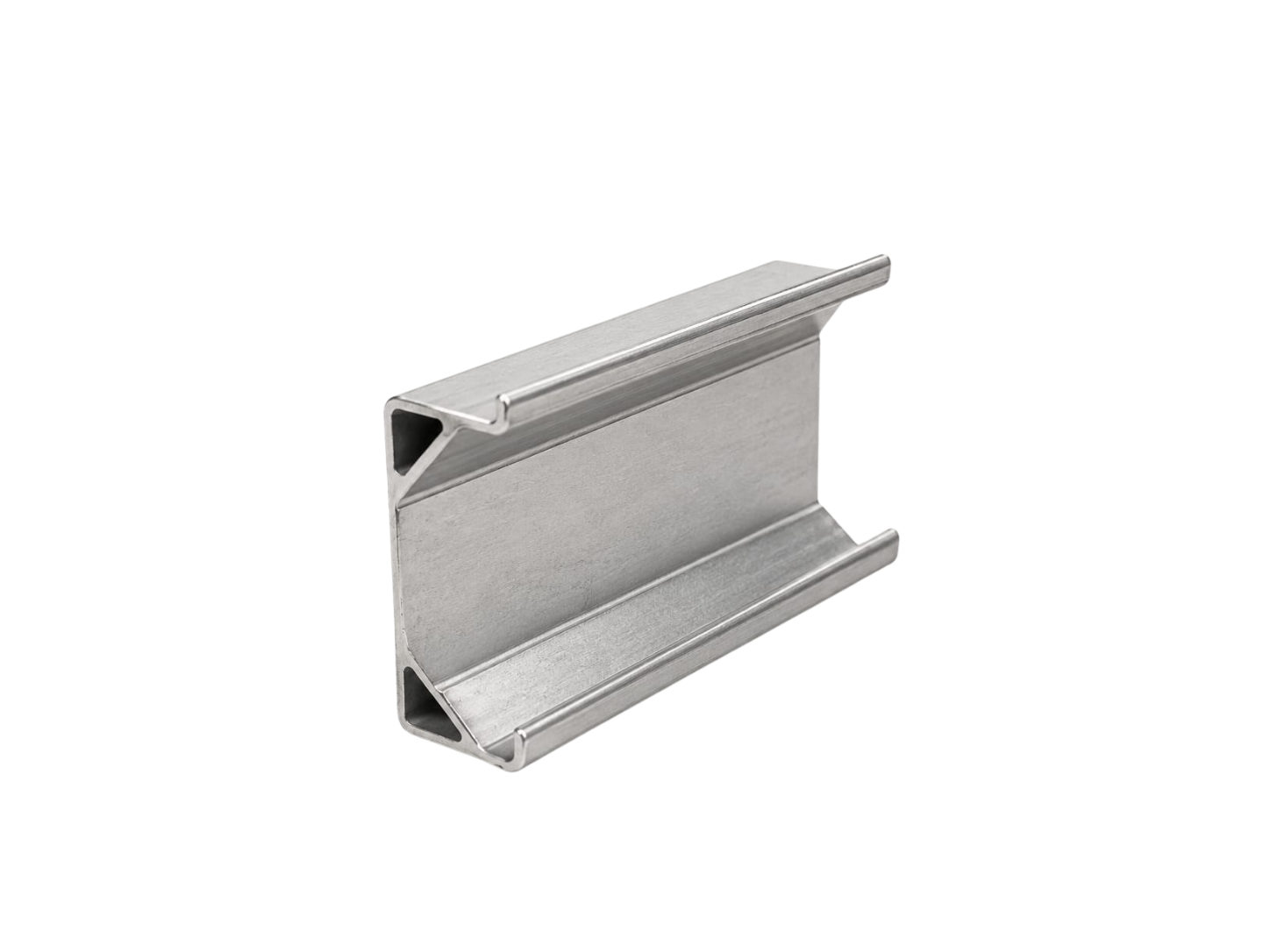

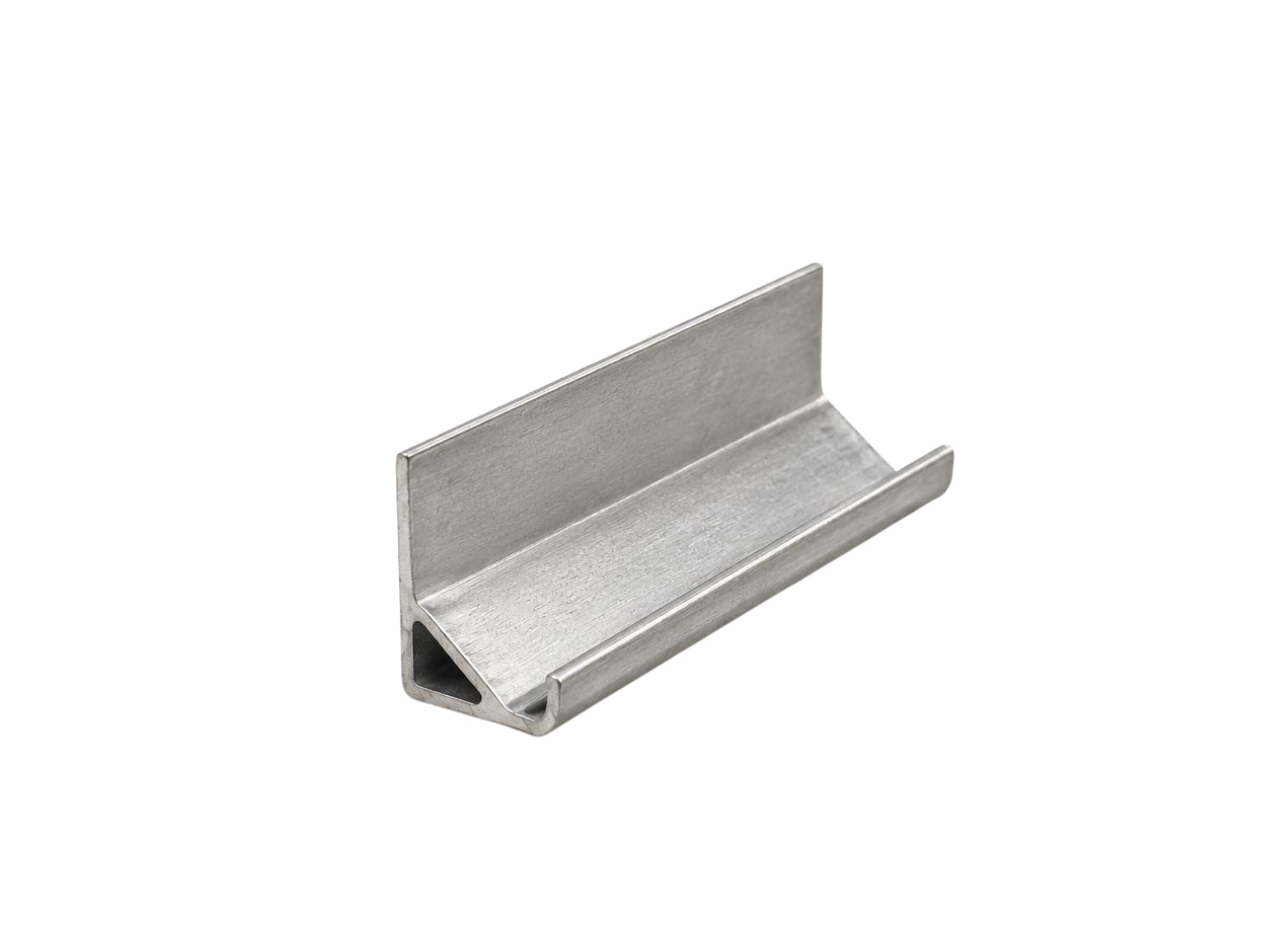

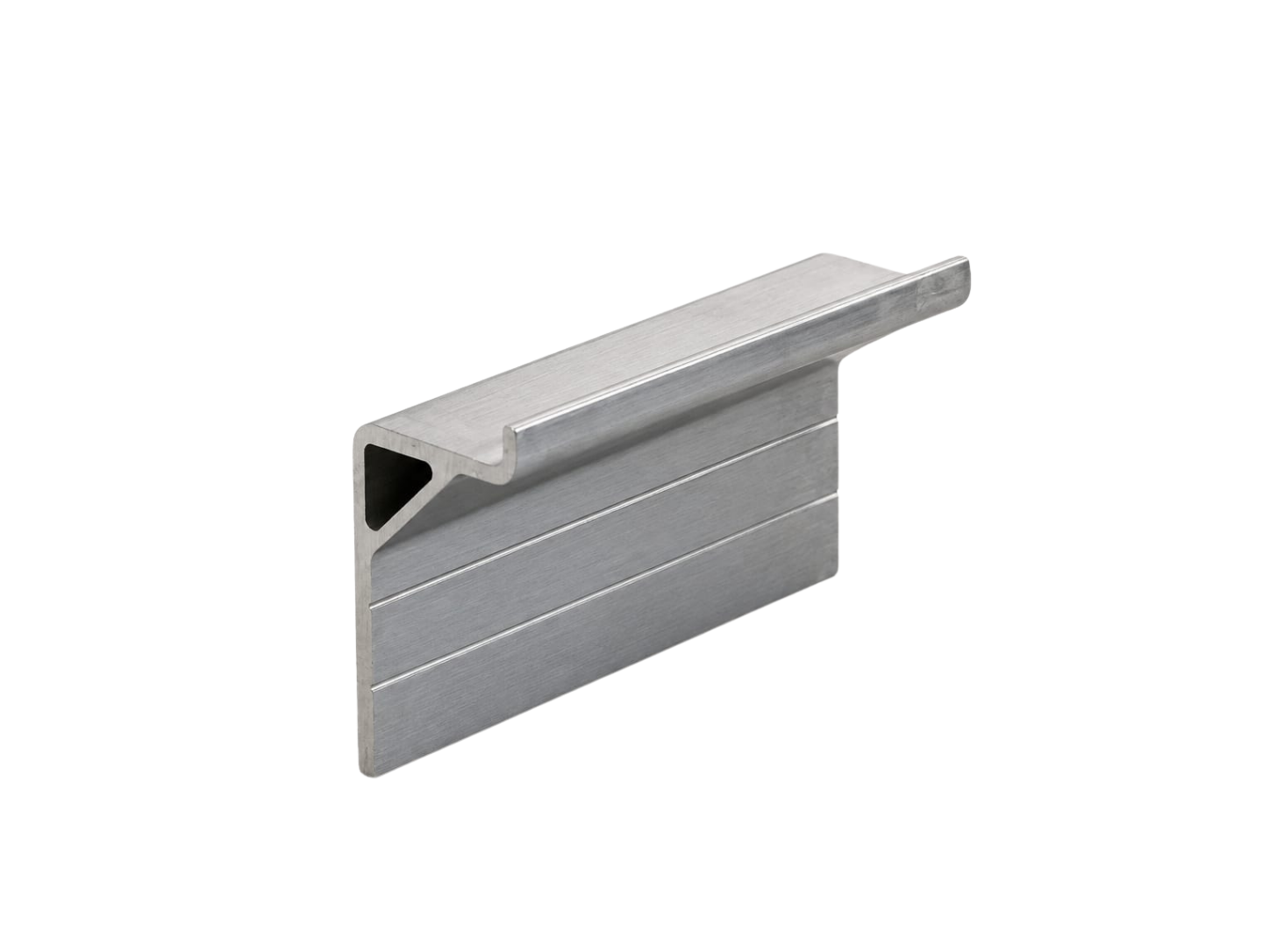

Technical concealed fixing system for ventilated ceramic façades using discontinuous horizontal profiles, designed to reduce the amount of aluminium required in the substructure. Compatible with GA16 ceramic pieces, it provides an optimized solution for the installation of reduced-format pieces. The system consists of vertical profiles fixed to the supporting structure using support and retention brackets. Discontinuous horizontal fixing elements are then installed onto these vertical profiles, allowing the GA16 ceramic pieces to be installed. The configuration of the discontinuous horizontal profiles optimizes aluminium consumption in the substructure while maintaining a concealed fixing solution for ventilated façades with reduced-format ceramic pieces. In addition, the FTS 502A GR system offers higher wind load performance than point fixing systems, providing an efficient technical solution for the design and installation of ventilated ceramic façades. C Intermediate Profile 150 mm C Start – End Profile 150 mm C End Profile 150 mm T Profile Horizontal load bracket H60 Termostop H60mm Termostop H120 Vertical load bracket H120 Self-drilling screw 4,8 Expansive metallic fixer Polyamide TFUX fixer Self-drilling screw 5,5 Plastic top for polyamide fixer Ceramic ventilated façade fixing system with GA16 FTS 502A GR
