GA30 resistant
ceramic panels

For ventilated facades on large buildings

The GA30 ceramic panel model is known for the resistance it gets from the larger tile thickness at 30 mm. The installation of a ceramic system using GA30 pieces emphasizes the horizontal distance between pieces for a more linear look to the final building facade finish.

The horizontal overlap provided by a ventilated facade with GA30 panels reduces the impact of rain and moisture.

On what types of buildings can GA30 ceramic panels be installed?

GA30 ceramic panels are often chosen for projects featuring large buildings intended for public use with greater resistance needs, although they are also adaptable to other types of building ventilated facades such as:

Homes

Residential buildings

Offices

Renovations

Range of colors on GA30 ceramic tiles

The tones on GA30 ceramic pieces are classified into three chromatic ranges with different finishes and textures: Terracotta, Glazed and Nature.

Terracotta. They stand out due to the intensity of the smooth, solid colors in the ceramic pieces such as white, beige, salmon, red, brown, gray and black.

Glazed. These ceramic pieces are surprising due to their glazing, which gives the tiles shiny effects and metallic finishes.

Nature. With finishes that include weaving in their designs and ceramic pieces that imitate wood, marble and other stones.

Characteristics of GA30 ceramic pieces and greater thickness

• Porcelain tiling

• Horizontal joint overlap

• 2 rectified sides

• Hidden anchoring

• Maximum resistance

Format and dimensions of GA30 ceramic pieces

GA30 ceramic pieces for ventilated facades weigh 47 kg/m2, are 30 mm thick and are available in several formats depending on their dimensions in millimeters (mm nominal/mm real):

Width of the ceramic pieces: 250/265, 300/315 y 400/415.

Choice of lengths: 800, 1000, 1200, 1500 and 1800

GA30

Panel fixing systems for GA30 outdoor facades

FAVEKER® ceramic tiles for ventilated facades can be installed over light fixing systems to optimize the costs of the underlying structure all while emphasizing a linear design that absorbs vibrations.

In addition to being easy to assemble, the best thing about FAVEKER® pieces is that they’re compatible with several of these systems meaning the customization possibilities for a ventilated facade are endless.

Which fixing systems are most appropriate for GA30 tiles?

The best anchoring for the GA30 ceramic system is the FTS 502B and the FTS 505 for vertical installation.

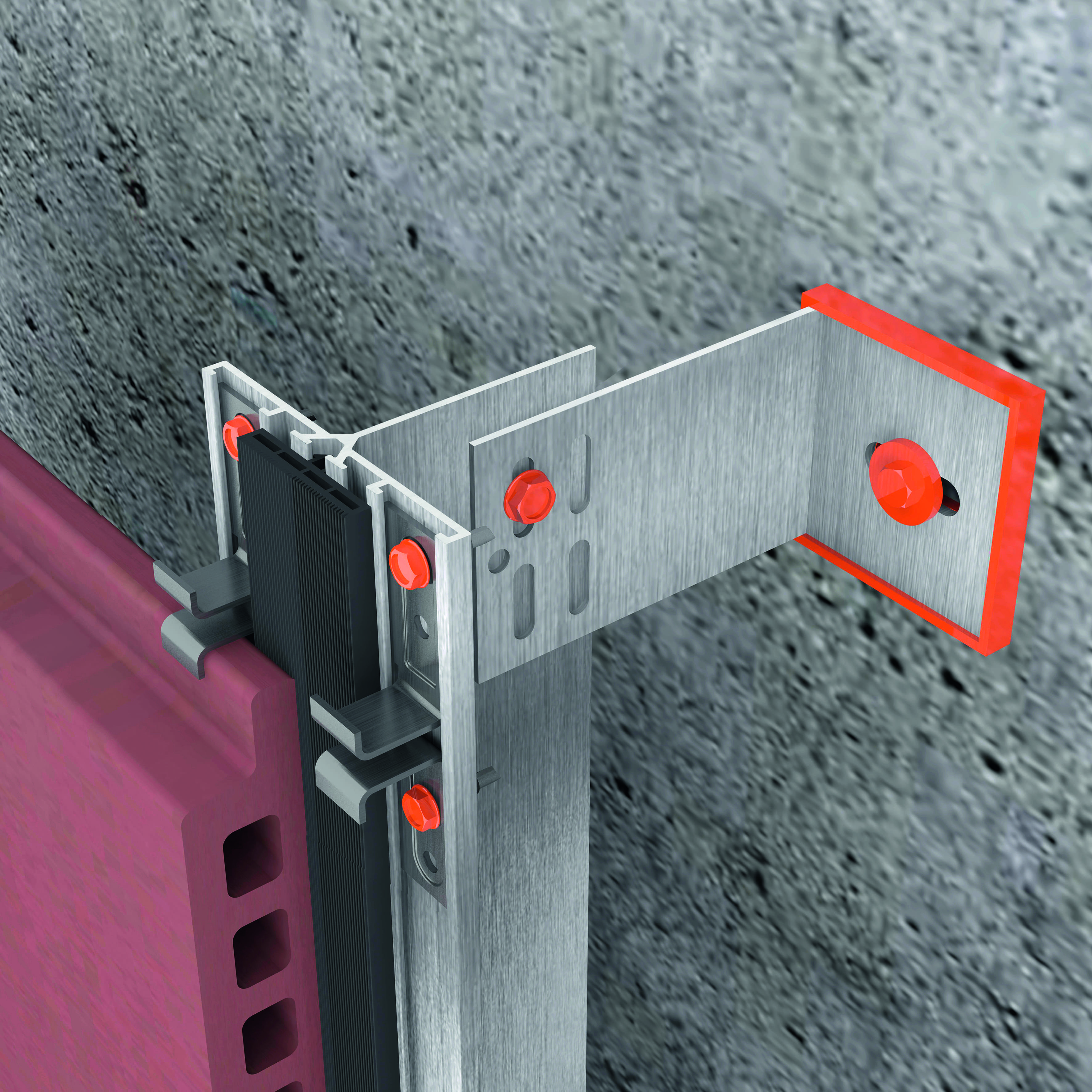

FTS 502B
FTS 505

Technical characteristics table for the GA30 model

STANDARD TEST DECLARED VALUE
Weight 47 kg/m
EN standard IS0 13006 UNE-EN 14411
Water absorption UNE EN 10545-3 ≤0,5%
Moisture expansion UNE EN 10545-8 <0.1mm/m
Thermal expansion UNE EN 10545-10 <6 μm/(m°C)
Frost resistance UNE EN 10545-12 no frost
Stain resistance UNE EN 10545-14 minimum 3
Breaking strength (break module) UNE EN 10545-4 > 20 MPa
Breaking strength UNE EN 10545-4 >12000 N
Color tolerance UNE EN 10545-13 ΔE < 1
Dimensional Tolerance: side straightness UNE EN 10545-2 ±0,2%
Dimensional Tolerance: orthogonality UNE EN 10545-2 ±1%
Dimensional Tolerance: side curvature UNE EN 10545-2 ±0,5%
Dimensional Tolerance: length/ height UNE EN 10545-2 ±1mm / ±2mm
Thickness tolerance UNE EN 10545-2 30 mm±10%
Reaction to fire EN 13501 A1/B-s1, d0 *
